Product type:Temperature fuse Thermal Cutoff - RY metal shell fuse | hot fusing body
Name:SWC temperature fuse
Item:variety of specifications
Description:

南韓S.W.C溫度保險絲

 韓國星宇SWC溫度保險絲/SWC temperature fuse
產品編號：
 SWC
產品名稱：
 南韓SWC溫度保險絲
產品類別：
 溫度保險絲(熱熔斷器)

    產 品 說 明
電氣額定值
額定電壓    250VAC（and 125VAC）
額定電流    10安培 (and 15A)
◎ 額定溫度范圍
Cat NO.
Tf
Cutoff temperature
Th
K-mark
UL
C-UL
VDE
TUV
CCC
PSE
SW-102T
  72℃
 70℃+2℃,-2℃
57℃
●
●
●
●
●
●
●
SW-105T
 77℃
 77℃+0℃,-4℃
62℃
●
●
●
●
●
●
●
SW-109T*
 84℃
 84℃+0℃,-5℃
69℃
●
●
●
●
●
●
●
SW-152T
 90℃
 90℃+0℃,-4℃
75℃
●
●
●
●
□
□
●
SW-106T
 91℃
  91℃+0℃,-4℃
76℃
●
●
●
●
□
□
●
SW-153T
  93℃
  93℃+0℃,-5℃
78℃
●
●
●
●
□
□
●
SW-104T
 98℃
 98℃+2℃,-2℃
83℃
●
●
●
●
●
●
●
SW-108T*
100℃
 100℃+0℃,-5℃
85℃
●
●
●
●
●
●
●
SW-110T*
109℃
109℃+0℃,-5℃
94℃
●
●
●
●
●
●
●
SW-111T
121℃
121℃+0℃,-5℃
106℃
●
●
●
●
●
□
●
SW-115T
126℃
126℃+0℃,-4℃
111℃
●
●
●
●
●
●
●
SW-129T
128℃
128℃+0℃,-5℃
113℃
●
●
●
●
●
●
●
SW-114T*
139℃
139℃+0℃,-4℃
124℃
●
●
●
●
●
●
●
SW-138T
144℃
144℃+0℃,-5℃
127℃
●
●
●
●
●
●
●
SW-116T
152℃
152℃+0℃,-4℃
137℃
●
●
●
●
●
●
●
SW-120T
167℃
167℃+0℃,-4℃
152℃
●
●
●
●
●
●
●
SW-118T
169℃
169℃+0℃,-5℃
154℃
●





●
SW-127T
184℃
184℃+0℃,-6℃
169℃
●
●
●
●
●
●
●
SW-122T
192℃
192℃+3℃,-3℃
177℃
●





●
SW-125T
195℃
195℃+0℃,-6℃
180℃
●
●
●
●
●
●
●
SW-139T
216℃
216℃+0℃,-6℃
200℃
●
●
●
●
●
□
●
SW-124T
228℃
228℃+0℃,-6℃
200℃
●
●
●
●
●
□
●
SW-128T*
240℃
240℃+0℃,-6℃
200℃
●
●
●
●
●
●
●
UL file NO : E126429  ● = Approved  □ = Applied
*Dual Rations(UL approved) - 250V 10A and 125V 15A
 ◎ 電氣參數

額定電壓 : 250V, AC (and 125V)
額定電流 : 10A (and 15A)
頻率 : 50 or 60Hz
最大允許插入電流 : 250V, ac 15A
瞬間過載電流 : DC電流脈沖，峰值150 A 接通3 毫秒后間隔10 秒。可至少通過100個循環的測試。

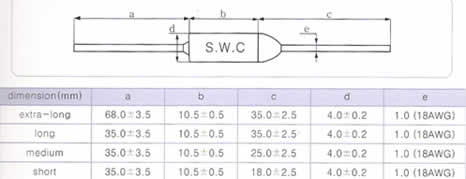

  ◎ 構造


韓國星宇SWC溫度保險絲/SWC temperature fuse

73度99度77度94度113度121度133度142度157度172度192度216度227度240度
 70度77度84度92度95度105度110度115度121度128度130度139度141度144度152度157度169度184度185度192度216度227度228度240度250度280度320度
溫度保險絲|熱保護器|溫度熔斷器|熱熔斷體 韓國星宇 SWC溫度保險絲 SW 10A 15A 250V
Cat NO. Tf Cutoff temperature Th K-mark UL C-UL VDE TUV CCC MITI
SW-102T   72度SW-105T  77度SW-109T*  84度SW-152T  90度SW-106T  91度
SW-153T   93度SW-104T  98度SW-108T* 100度SW-110T* 109度SW-111T 121度SW-115T 126度 常州勝名電子（盛威爾電子）歡迎洽談
SW-129T 128度SW-114T* 139度SW-138T 144度SW-116T 152度SW-120T 167度SW-118T 169度
SW-127T 184度SW-122T 192度SW-125T 195度SW-139T 216度SW-124T 228度SW-128T* 240度
　
